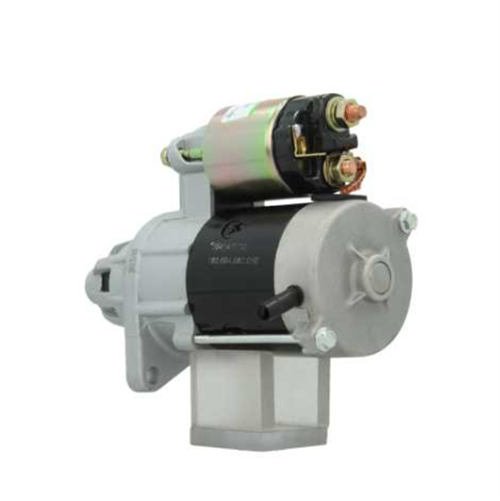

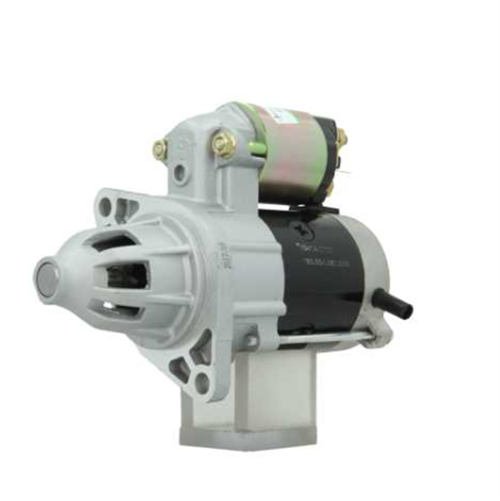

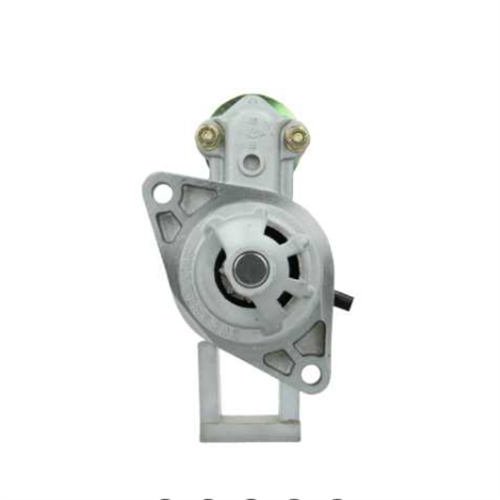

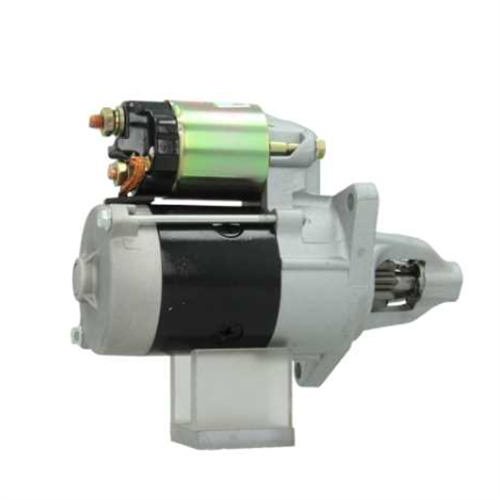

STG92872 STARTER MOTOR 31100-77A00 228000-6791 FITS SUZUKI CARRY VAN 1.3 PETROL
STG92872 Starter Motor (31100-77A00 / 228000-6791) – Technical Specifications & Compatibility
🔧 Core Specifications
- Part Number: STG92872
- OEM Numbers:
- Suzuki: 31100-77A00, 3110060B52
- Denso: 228000-6791 (primary), 228000-6790
- Voltage: 12V
- Power Output: 0.8 kW (800W)
- Rotation: Counter-Clockwise (CCW)
- Pinion Teeth: 8T
- Mounting Holes: 2
- Spigot Diameter: 64.8 mm
- Pinion Home Position: 28.0 mm
- B+ Terminal: M8 stud
- Mounting Position: +150° (clock position)
✅ Exact Applications
- Suzuki Carry Van (1.3L Petrol Engine)
- Other Suzuki Kei Trucks & Small Commercial Vehicles
- Compatible with some Suzuki Jimny & Samurai models (verify fitment)
🔄 Cross-Reference Compatibility
Brand | Part Numbers |
---|---|
Suzuki OEM | 31100-77A00, 3110060B52 |
Denso | 228000-6791, 228000-6790 |
Valeo | 458318 |
Delco Remy | DRS0046 |
Lucas | LRS01731, LRS1731 |
WAI Global | 31339N, 31339R |
Wood Auto | STR70102, WOOSTR70102 |
HC-Cargo | 114773, F032114773 |
PSH | 180504082 |
Optimum | OSM10865 |
ATK | AZS254, AZS263 |
⚙️ Technical Features
✔ Compact & Lightweight – Designed for small commercial vehicles.
✔ CCW Rotation – Must match Suzuki’s flywheel engagement.
✔ 8-Tooth Pinion – Ensures proper meshing with the flywheel.
✔ M8 B+ Terminal – Standard for 12V automotive applications.
✔ Durable Construction – Sealed against dust & moisture (IP54 rating).
⚠️ Installation & Maintenance Notes
- Correct Mounting Position:
- +150° clock position (critical for proper alignment).
- Pinion Engagement Check:
- Ensure 8T pinion meshes smoothly with the flywheel.
- Electrical Connections:
- M8 terminal requires a secure connection (avoid loose cables).
- CCW Rotation Confirmation:
- Wrong rotation will not engage the flywheel.
- Max Cranking Time:
- Do not exceed 10 seconds of continuous cranking.
