HomeShopAlternatorATG10096 Alternator 129470-77200 LR180-03C for Yanmar Marine 3JH2 3JH2BE

Description

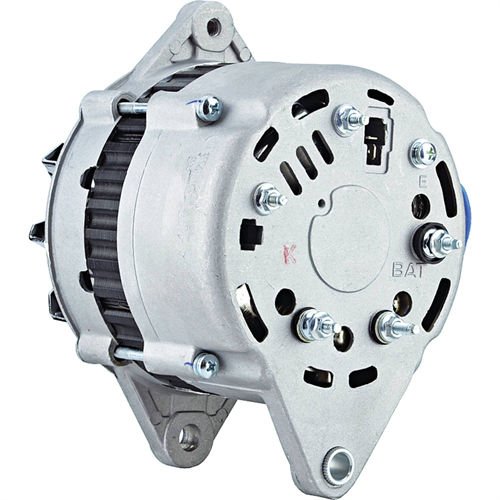

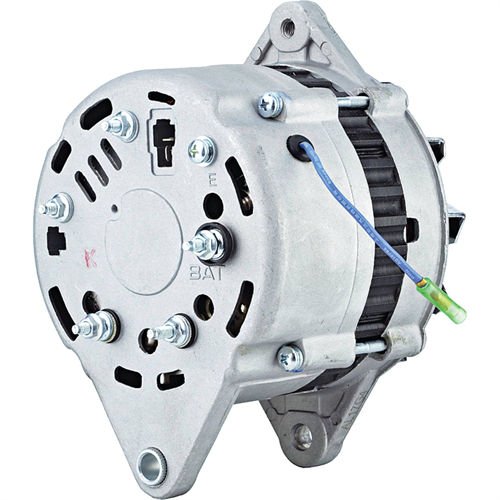

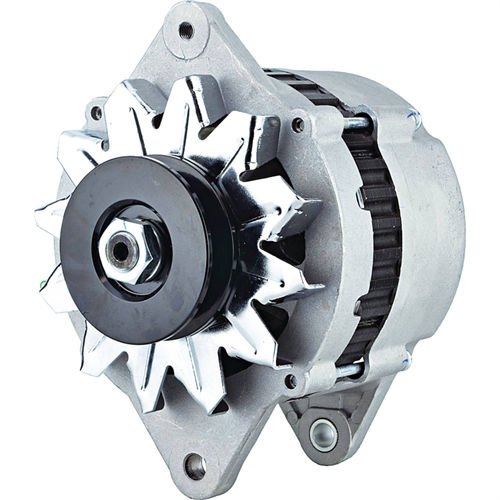

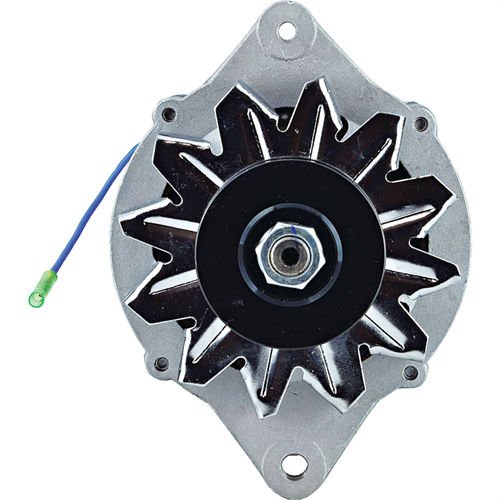

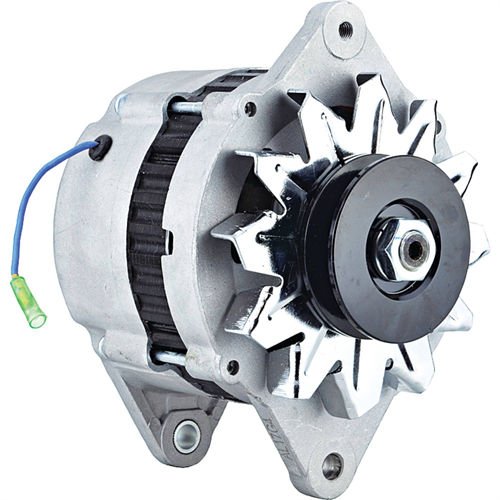

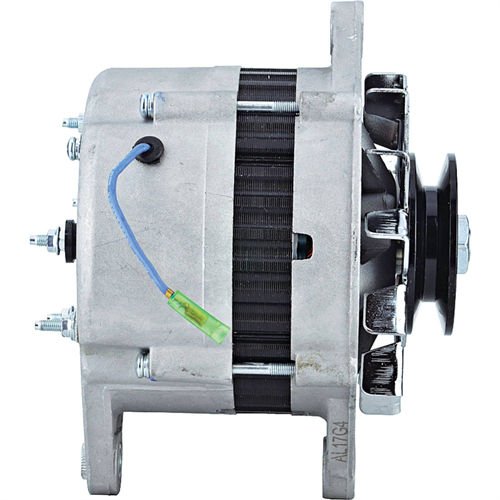

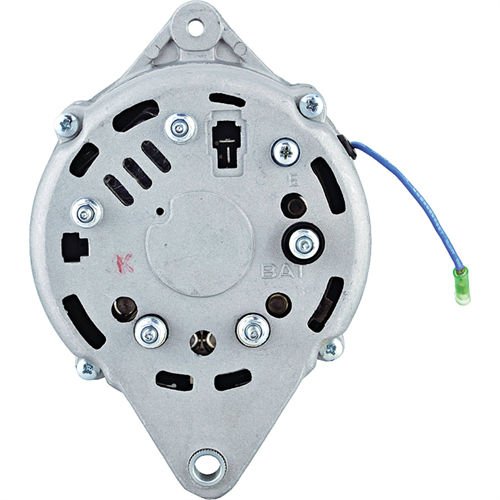

ATG10096 Alternator 129470-77200 LR180-03C for Yanmar Marine 3JH2 3JH2BE

Tags for Alternator ATG10096:

  1. Yanmar Marine Alternator ATG10096
  2. Alternator 129470-77200 for Yanmar 3JH2 3JH2BE
  3. 12V 80A Alternator Replacement for Marine Engines
  4. Aftermarket Alternator LR180-03C
  5. Marine Alternator for Yanmar 3JH2 Series

Key Details:

Compatible Equipment:

  • Yanmar Marine Engines: 3JH2, 3JH2BE

Alternator Specifications:

  • Voltage: 12V
  • Amperage: 80A
  • Condition: New (Aftermarket Part)
  • Critical Note:
    • Fully insulated terminal.
    • Terminal ID: Light/Relay.
    • Relay terminal voltage is 1.25V static and battery voltage when running.
    • Blue wire is stator voltage.

Part Numbers:

  • Primary Part Numbers:
    • Yanmar: 129470-77200, 119573-77200, 119573-77201
    • Hitachi: LR180-03A, LR180-03B, LR180-03C
  • Cross-Reference Part Numbers:
    • Andre Niermann: 28003
    • API Marine: 20025
    • Arco Marine: 84150
    • Arrowhead: AHI0059, 400-44046
    • Cargo: 112375
    • Dixie: A-8520
    • EMP Parts: Apr-78
    • EMS: 12272N
    • J & N: 400-44046, 400-44130
    • Lester: 12272
    • Lucas Electrical Europe: LRA01632
    • MES Motorcycle & Marine: 382M
    • Minnpar: 47-2879
    • MP Parts: 4-1066
    • PIC: 204-213
    • Sierra Marine: 18-6278
    • WAI: 12272N
    • Wilson: 90-25-1093
    • Wilson Small Engine: 70-25-12272

Item Description:

  • Item Condition: Aftermarket Part
  • Description: Alternator
  • Voltage: 12V
  • Amps: 80A
  • Condition: New
  • Critical Note: Fully insulated terminal, relay terminal voltage details, and blue wire function.

This alternator is a high-quality aftermarket replacement for Yanmar 3JH2 and 3JH2BE marine engines, providing reliable performance with a 12V 80A output. If you need further assistance or additional details, feel free to ask!

Warranty

Tianguan provides a 1-year limited warranty for new starters/alternators only. If the problem is caused by Tianguan, the seller pays all shipping costs. The warranty does not apply to improper installation, water/fire damage, modifications, or any natural disasters.

Returns

If the return is caused by the consumer (non-defective return), consumer should be responsible for the shipping fee. The specific fee should be based on the express company you choose. If the item problem is caused by Tianguan, contact us before return item, we will provide refund/exchange/or other way to solve it.No refund/exchange to provide if no notification before sending back items beforehand. If customer received damaged product, customer need to send email to linda@tgautoparts.com in 72 hours of item delivered. Customer need to send pictures/videos(use to proof related issues) in emails, Tianguan will recognize the return reason/confirm the issue. Our team will feedback to customer asap. ◉ Damaged Item Damaged merchandise includes items that are damaged during shipping. If you receive the package and then find shipping damage, please save all packaging material and paperwork and contact us immediately by mail linda@tgautoparts.come or other way you have. ◉ Technical Support We highly recommend professional installation for all of our products. We are not accepting any exchange or returns due to improper installation.

Shipping

Orders usually been shipped out within 1-2business days after payment has been cleared, Delivery in 5-7 working days .Orders made on Saturdays, Sundays, and holidays will be processed on the next business day. If there is any problem on your order, please feel free to contact our team by email(linda@tgautoparts.com) Please ensure that the shipping address you provide is accurate. We are not responsible for undeliverable addresses. Shipping address of P.O. BOX, APO, FPO or State of HI, AK, VI, PR. will not accepted.

Additional information

Weight 4 kg
Dimensions 28 × 26 × 22 cm
brand

YANMAR

APPLICATIONS LIST

Yanmar 3JH2 3cyl Diese 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Yanmar 3JH2 3-Cyl Diesel , Diese 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Yanmar 3JH2BE 3cyl Diese 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Yanmar 3JH2BE 3-Cyl Diesel , Diese 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Yanmar 3JH2E 3cyl Diese 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Yanmar 3JH2E 3-Cyl Diesel , Diese 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Yanmar 3JH3 3cyl Diese 1999, 2000, 2001, 2002, 2003
